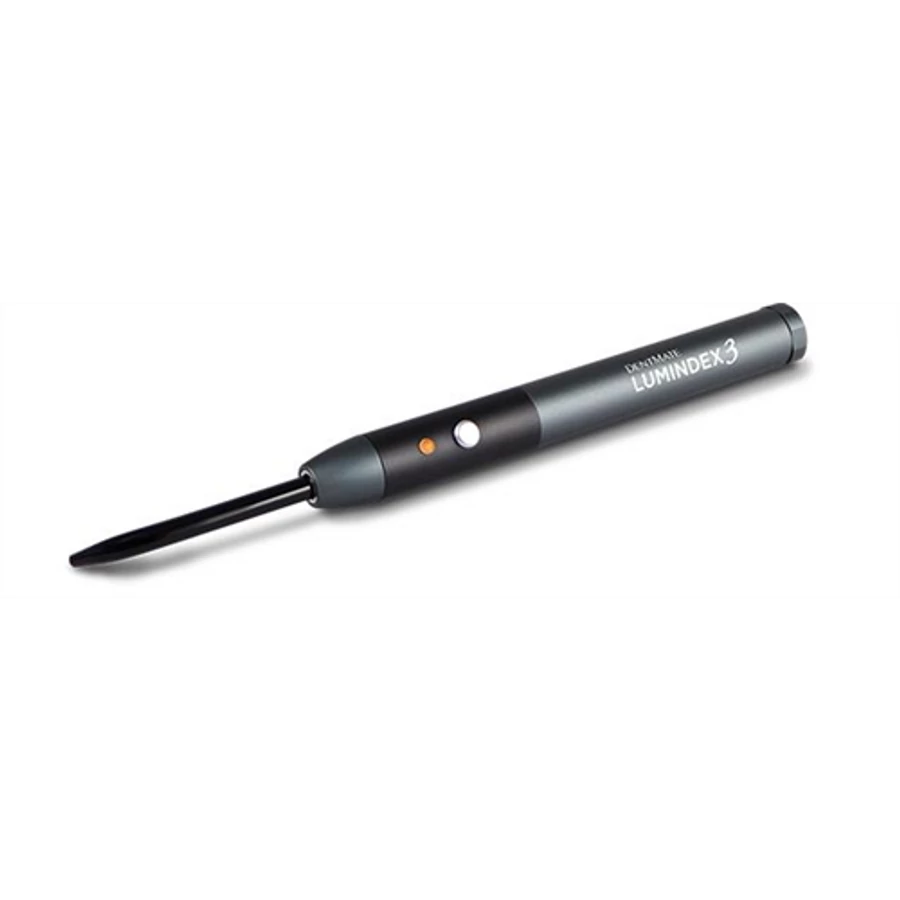

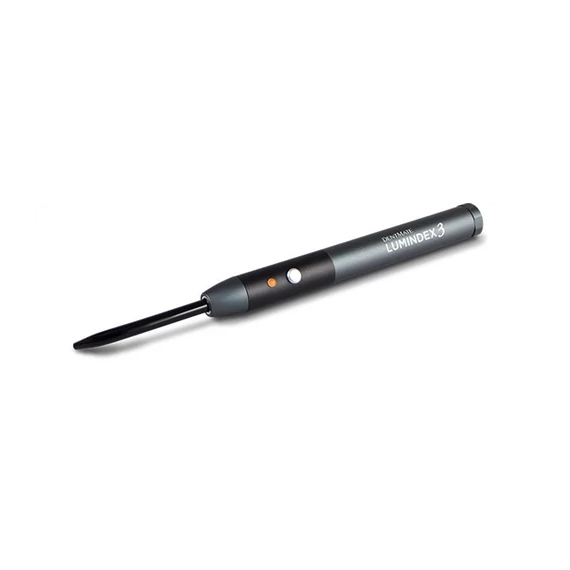

LEDEX Lumindex 3 plakk vizsgáló lámpa

Advantages:

7 powerful extensive modes

• OLED display, turbo light guide rod, 7 modes including Low, Ramp, Standard, High, Fast Ortho, Plaque Inspect, Caries Inspect

Broadband LEDs used

• Use broadband LEDs , wide wavelength output is more fitting to phenyl propanedione (PPD) and Lucirin TPO photoinitiator.

3 sec. fast cure

• Use high power 10W broadband LEDs, up to 1800 mW/cm, it can cure the composites over 2 mm in 3 sec.

Plaque Inspect & Caries Inspect

• Use *FIND optical filter, it can detect dental plaque, caries easy and clearly

*FIND:Fluorescence Inspect and Determine system

Never Shutdown within continuous use

• Smart heat-management system prevents device overheating during continuous use

Built-in radiometer

• OLED display, easy to check intensity

Cartridge battery

• Use cartridge design, easy to change battery

LOW mode:

Ideal for curing bonding material that is between tooth and composite resin.

RAMP mode:

Ideal for curing the wide area of composite resin, it can avoid shrinkage.

STANDARD mode:

It is a stable output, ideal for most cases.

HIGH mode:

Ideal for orthodontic, pediatric dentistry, or such as dental cement, porcelain veneer,fiber post in endodontic fields. It can save time.

FAST ORTHO mode:

Ideal for orthodontics, it is easy to bond materials and saving time.

Plaque Inspect:

Ideal for plaque inspect, it is an easy way to check plaque on the anterior.

Caries Inspect:

Ideal for caries inspect, it is an easy way to check caries on the posterior.

Specification:

Handpiece

Light source:  high power 10W LEDs, average lifespan is 100,000 hours

Wavelength: 390 ~ 480 nm, peck: 405, 460 nm

Radiant intensity: up to 1800 mW/cm

Light guide rod: Ø11>8 & Ø11>5 mm optical fiber, Steriliz-able in autoclave (max. 135 °C for 20 minutes)

Weight: 180 g (with battery & light guide rod)

Size: Ø38 mm (max.) x L190 mm

Weight: 140 g

Size:      Ø114 mm x H 68 mm

Battery:

  Type: Lithium-ion, 3.7V/2500mAh

  Charge time: about 2.5 hours

  Use time: 120 minutes

(720 times in 10 sec. standard mode)

Power supply:

 Type: mini USB jack

 Intput: 100 ~ 240 V, 50/60Hz

 Output: DC 5V/1.2A
